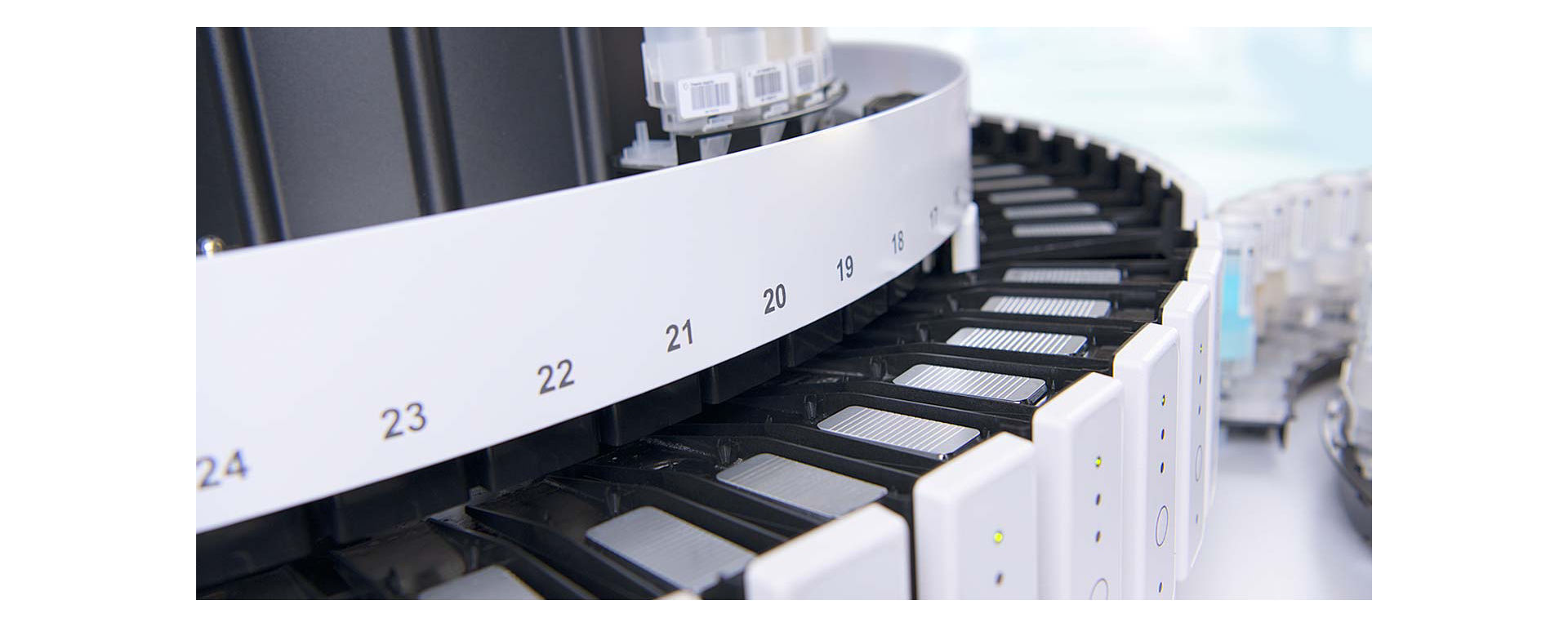

For in vitro diagnostic use. Instrument BenchMark ULTRA PLUS IVD BenchMark ULTRA PLUS INS_6476 BENCHMARK ULTRA PLUS Instrument 07613336184608 Not Available BENCHMARK ULTRA PLUS INSTRUMENT 09576797001 Not Available Instruments en The BenchMark ULTRA PLUS instrument is intended to automatically stain histological or cytological specimens on microscope slides with specific immunohistochemistry, immunocytochemistry, or in situ hybridization reagents for in vitro diagnostic use.The BenchMark ULTRA PLUS instrument fully automates the processes of baking, deparaffinization, and staining for the qualitative or semi quantitative detection of analytes as an aid in diagnosis by pathologists. The system is intended for use in the anatomic pathology (AP) laboratory environment by trained laboratory personnel who are knowledgeable in histology processes and have basic computer operation skills. en Instrument and consumablesSpecificationRequirementSlide processing capacity30 independent slide drawers.Slide tray positions1 to 30 positions, continuous access.ThroughputApproximately 90 slides in 8 hours based on standard IHC samples.Slide heater temperature37 °C to 90 °C +/- 2 °C90 °C to 100 °C +2 °C /-3 °CReagent carousel35 reagent positions.Slides25 × 75 mm (1 x 3 inches) or 26 × 76 mm positively-charged microscope slides.Modularity1 to 4 BenchMark ULTRA PLUS instruments to one host computer is recommended for efficient processing, using VSS on the integrated touch screen monitor. Up to 8 instruments can be connected to the host computer if VSS is not used on the instrument touch screen monitor.Bulk reagentsUp to 7 different bulk reagents in 3- to 6-liter continuous access on-board containers.Internal system computerConnects to laboratory intranet or Roche Provided Network (switch box).WasteTwo 20 L carboys and two 5 L carboys. Waste is segregated.Dimensions and weight SpecificationMetric measurement (Europe)Imperial measurement (US)Height is less than or equal143 cm56 in.Width is less than or equal115 cm45 in.Depth is less than or equal89 cm35 in.Instrument dry weight is less than or equal393 kg645 lb.Size with rear covers removed (W x D x H) is less than or equal111 x 81.7 x 143 cm44 x 32.2 x 56 in.
