VENTANA DP 200 Digital Pathology Scanners | Digital Pathology

Robust high-speed scanning empowers precision diagnosis

Country Specific Labeling See country-specific product labeling for regulatory status.
High-resolution digital pathology slide scans with the VENTANA DP 200 slide scanner
Do you have any questions?
CONTACT US

Advance Your Digital pathology Workflow With The VENTANA DP 200

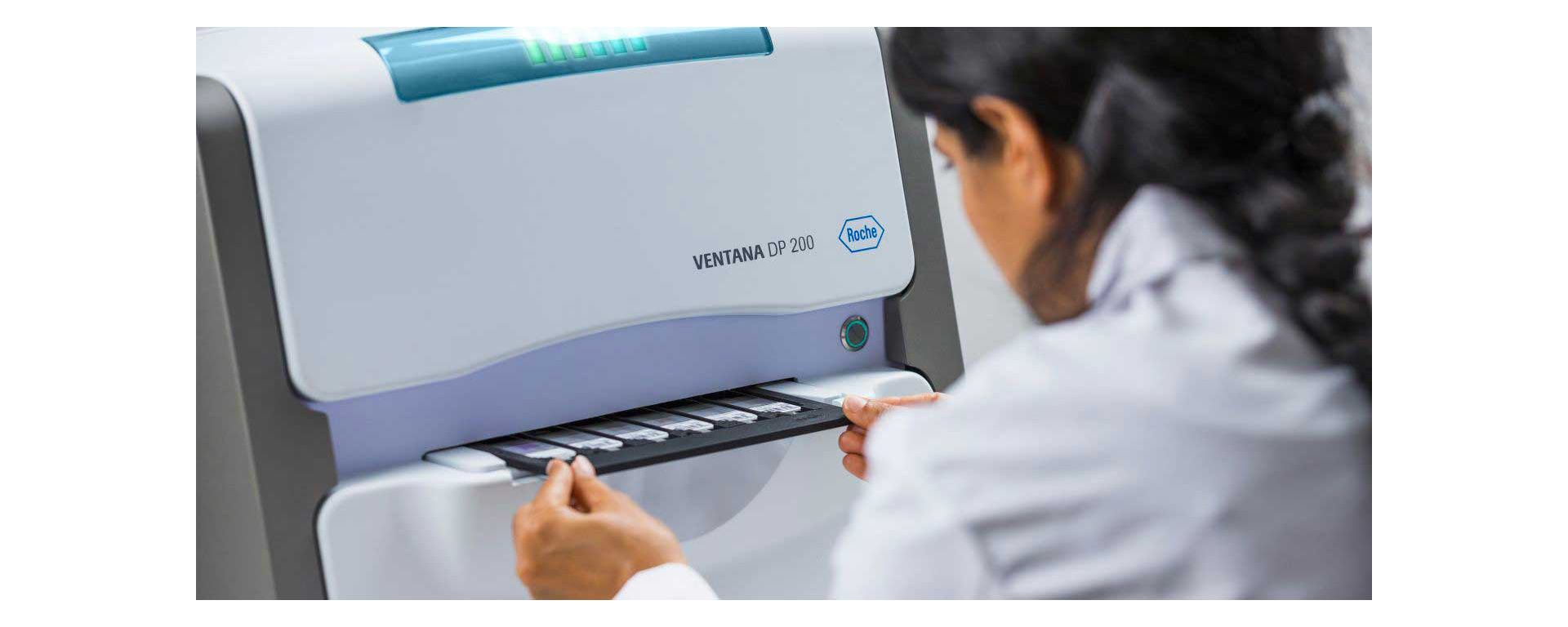

Introducing the VENTANA DP 200 slide scanner, the latest in bright field digital pathology scanners from Roche. Designed for a variety of applications, the VENTANA DP 200 slide scanner is a six slide high-speed bright field scanner with excellent image quality to enhance pathologists' review of digital slides. This fast and easy to use high-resolution slide scanner offers a no-touch start process, intuitive user interface and is well-suited for remote site scanning, first-time digital pathology users, frozen section scanning, and more.



Workflow



Auto-start upon tray load, scan speed <49 seconds, ease of use.



Image Quality



Auto white balance calibrations, dynamic focus, color management, DICOM compatibility.



Reliability



Diagnostics & Quality Check, no slide handling within instrument, CareGiver Remote Support.

VENTANA DP 200 slide scanner features

  • High-speed scanning: Scans at 20x magnification in less than 49 seconds and at 40x magnification in less than 85 seconds for 15 mm x 15 mm areas of interest (AOIs)
  • No slide handling: Loads slides for scanning using a tray-based system, which eliminates slide-handling errors and improves reliability
  • High-quality images: Produces high-resolution digital images for various tissue types, including challenging slides and frozen sections
  • DICOM (Digital Imaging and Communications in Medicine) compatibility: Provides a standardised output file format for interoperability with PACS servers
  • Colour management: Uses ICC colour standard profile generation in every scan
  • Dynamic focus: Tracks tissue depth in real time and uses the data for high resolution slide scanning

VENTANA DP 200 slide scanner applications

  • Immediate file sharing for earlier collaboration
  • Remote site scanning
  • Digital read for IHC markers
  • Scan a variety of slide types including H&E, special stains, cytology and frozen sections



Experience the difference the VENTANA DP 200 slide scanner offers as the core of the Roche Digital Pathology Solution.

The Roche Digital Pathology solution combines innovative hardware, software and uPath whole slide image analysis algorithms including algorithms for HER2 (4B5), HER2 Dual ISH, and PD-L1 (SP263), and works in integrated harmony with the full Roche diagnostic portfolio for an end-to-end experience.

Built by pathologists, for pathologists, the end-to-end Roche Digital Pathology Solution focuses on maximising the pathologists' unique training, skills, and vision.

Experience the power of precision diagnosis.

Contact Us

Form Successfully Submitted!
Thank you for your submission!
text

Overview

Ordering Information

Technical Documents

VENTANA DP 200 slide scanner specifications

  • Slide capacity

    6 single slides, 3 double slides

  • Scan magnifications

    20x and 40x

  • Focus method

    Dynamic focus

  • Volume scan

    Up to 15 layers

  • Time to view

    <49 seconds @ 20x
    <85 seconds @ 40x (15 mm x 15 mm AOIs)

  • Scan time

    20x: approximately 36 seconds,
    40x: approximately 73 seconds for a 15 x 15 mm AOI

  • Slide handling

    No slide handling, tray-based movement

  • Dimensions / weight

    19.6 in x 26.7 in x 18.2 in (W x D x H) / <105 lbs
    49.78 cm x 67.82 cm x 46.23 cm / <48 kg

  • Calibration

    Auto-calibration
