cobas® t 411 coagulation analyzer

IVD For in vitro diagnostic use.
Product image for cobas t 411 coagulation analyzer
Contact us

Thrive with excellence

The cobas® t 411 coagulation analyzer is an efficient automated coagulation analyzer designed to meet the needs of the low to medium throughput laboratories. With innovative features like multivendor cap-piercing, integrated barcode scanning for samples and reagents, and continuous loading of samples, reagents, and cuvettes, the cobas t 411 ensures maximum lab productivity and a dynamic workflow.

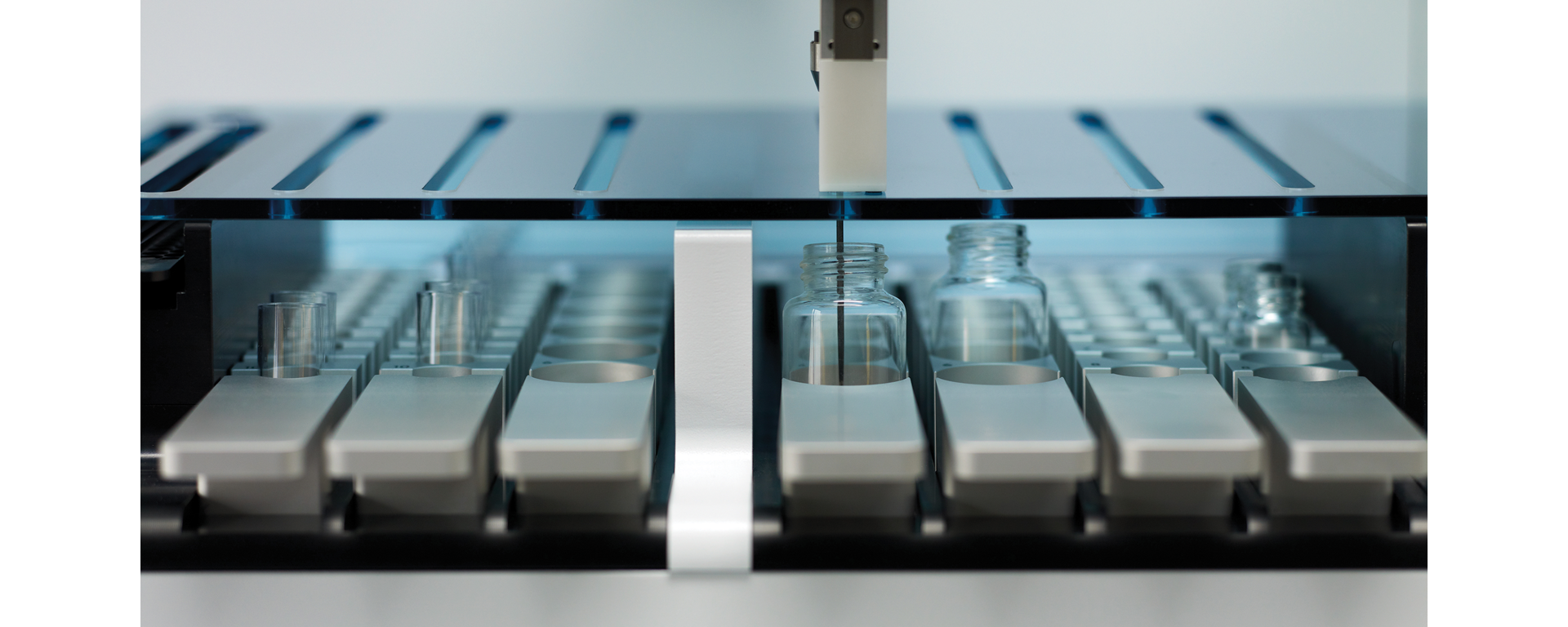

A close-up image of the cobas t 411 analyzer pipetting samples into loaded vials
Benefits at a glance

Benefits at a glance

Icon of interconnected circles and arrows, symbolizing streamlined and continuous workflow of the cobas t 411 analyzer

Complete daily testing workload in a timely manner

  • Opto-mechanical detection system
  • Space-saving design with integrated screen and drawer keyboard
  • Reagents, samples, and cuvettes can be loaded and unloaded at any time
  • Built-in bar code reader for samples and reagents
  • Comprehensive QC and total result traceability
  • Minimal maintenance and service requirements
Icon of a multi-tube rack to illustrate multiple tube types support and efficient sample management

 Enhanced safety for the operator with optimized workflow

  • Multi-mode cap-piercing
  • Multiple tube types supported, including micro tubes and paediatrics
  • Dedicated STAT by-pass port
  • Open and closed sample tubes in the same rack are supported
  • Different loading options: random access, batch, and STAT
  • Automatic re-run and reflex testing
Outlined vial with green bands, representing flexible reagent handling, barcode tracking, and efficient reagent utilization.

Cost-effective reagent utilization with continuous operation

  • Software-guided reagent management with barcode scanning
  • High capacity with up to 70 reagent barcoded vials on board: 40 cooled, 30 uncooled
  • Automatic pre-dilution in a dedicated rack
  • Less dead volume with tilted reagent vial
  • Cooled reagent compartment at 18ºC ± 2ºC
Icon of a test tube with a check mark to illustrate sampling accuracy of the cobas t 411 coagulation analyzer

Accurate sampling with one single probe

  • Dedicated sample and reagent pipetting wells
  • Automatic cuvette checks
  • High cuvette storage on board: 240 cuvette bars (960 tests)
  • Steel ball stirs the mixture magnetically
Icon of a patient report to illustrate reliable and traceable documentation of the cobas t 411 coagulation analyzer

Robust and sensitive results with a user-friendly interface

  • Real-time results reaction curve display
  • Full traceability of patient results and comprehensive tracking
  • Comprehensive QC module with Levey-Jennings charts
  • Store more than 100,000 results and share through LAN and LIS
Outlined square with upward arrow inside a rounded frame, symbolizing scalable automation and seamless lab integration.

Different automation levels support evolving lab demands

  • Choose between standalone or full automation to match lab throughput
  • Seamless integration into lab operations with navify® Lab Operations

Related categories

Use left and right arrow keys to scroll between the tabs

Contact us

Overview

Ordering Information

View Full Table
close
Product specification Value

Throughput

 Up to 140 tests/hour (PT)
Up to 100 tests/hour (mixed mode)

Samples

 Up to 100 samples on-board
Cap-piercing
Dedicated STAT port
Continuous loading via 5 position racks

Reagents

 Continuous rack-based loading
Up to 70 vials onboard capacity
Extended Routine Menu including PT, APTT, FIB, TT, AT and DD

Test principle

Optical clotting time detection using chronometric, chromogenic, and immunoturbidimetric measurement methods

Software

 Comprehensive QC program including Levey-Jennings
User-definable protocols
LIS connectivity

Technical Documents

Access important product documentation including relevant certificates and other resources.

After clicking below, you will be redirected to eLabDoc, where you can select your local country-specific documents.
Document repository artboard
error errorMessage
Sorry, we couldn't find the content you are looking for
Please try again later

cobas® coagulation analyzer comparison overview

cobas® t 411 coagulation analyzer
cobas® t 511 coagulation analyzer
cobas® t 711 coagulation analyzer
Throughput
~ 140 tests/hr
~ 195 tests/hr
~ 390 tests/hr
Sample capacity
Up to 75
Up to 80
Up to 80 / continuous loading with Total Laboratory Automation
Reagent positions
Up to 70 vials
Up to 57 cassettes, ~ 171 vials*
Up to 57 cassettes, ~ 171 vials*
Sample integrity check
Automatic cuvette checks
Hemolysis, Icterus, and Lipemia (HIL) index, Clog detection, Automatic cuvette checks
Hemolysis, Icterus, and Lipemia (HIL) index, Clog detection, Automatic cuvette checks
Sample loading and unloading
Continuous with dedicated STAT by-pass port
Automated via front loading port
Automated via front loading port and side balcony
Connectivity to automation
N/A
N/A
Connectivity to automation with the cobas® 8100 automated workflow series and the cobas® connection modules


*Statistics of a university hospital with 475,000 routine tests per year and a walk-away time of up to 14 days

For in vitro diagnostic use.
