BenchMark Special Stains system

Empowering Special Stains with consistent quality, workflow efficiency and improved safety through automated slide staining and ready-to-use reagents.

IVD For in vitro diagnostic use.

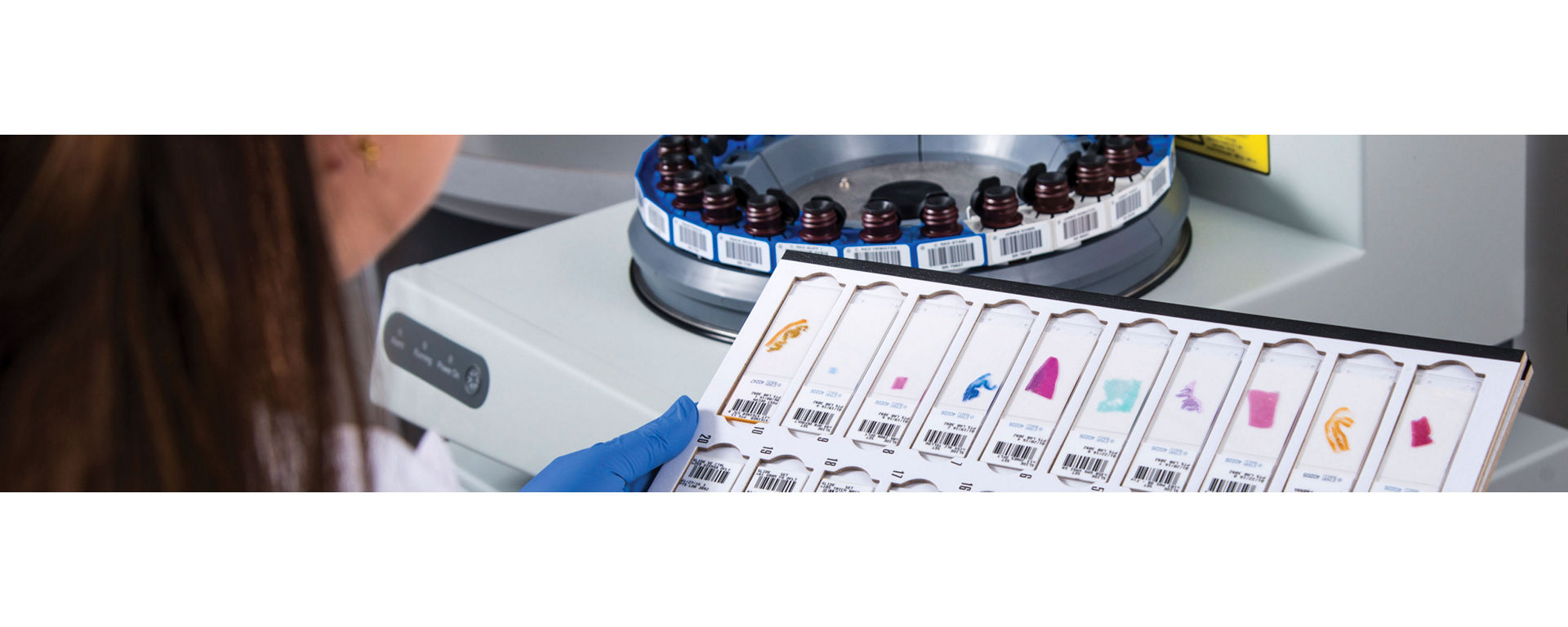

Product image for BenchMark Special Stains instrument
Do you have any questions?
Contact us
The BenchMark Special Stains system offers a new level of automation for Special Stains.

Productivity features such as the ability to run any test next to any other test and waste fluid sensing optimize workflow. Reducing manual processes and improving lab capabilities allows your skilled laboratory professionals to focus on higher value contributions.

Additionally, an intuitive user interface (Ventana System Software) connects up to eight BenchMark Special Stains and IHC/ISH instruments, enabling seamless integration and easy adoption for lab personnel.

The BenchMark Special Stains system brings full automation to the anatomic pathology laboratory for Special Stains to enhance confidence with a more informed diagnosis.

Consistent quality

Optimize assays with customizable protocols and leverage automation to eliminate technician variability for reproducible, high quality stains. Jones Staining Kit images demonstrate customizable staining achieved with different protocol selections.

Special Stains slides
Enhanced workflow efficiency
  • Eliminate manual processes with ready-to-use reagents, fully automated baking, deparaffinization and staining, and independent slide heating
  • Slide carousel holds 1–20 slides with independent temperature control for each position
  • Free standing or modified benchtop installation
  • Bulk fluid and waste capacities designed to support a minimum of three full runs
BenchMark Special Stains instrument workflow image
Improved safety
  • Ready-to-use reagents reduce technician exposure to, and handling of, hazardous chemicals
  • Bulk fluid volume sensing automatically detects waste fluid levels to prevent spills or overflow
  • Barcoded slides and reagents ensure the right test for the right patient
  • Individual slide staining virtually eliminates cross-contamination
Roche BenchMark Special Stains instrument image for safety
Experience advanced support

CareGiver remote support establishes a communication link between the BenchMark Special Stains instrument and the Roche customer support center, delivering remote troubleshooting and training, software upgrades over the internet and over-the-shoulder help from Roche service experts.

Customer support
Special Stains images

Special Stains assay menu

Take an in-depth look at our full Special Stains assay menu. Search our product catalogs and documentation library in eLabDoc.


Ordering Information

Technical Documents

General characteristics

  • Fully automated

    Baking, deparaffinization and staining of Special Stains

  • Slide carousel

    1–20 slides with independent temperature control for each position

  • Reagent carousel

    25 reagent positions

  • Slides

    25 mm x 75 mm or 26 mm x 76 mm Superfrost Plus

  • Bulk fluids

    Up to four bulk fluids in 3-6 L on-board containers

  • DI water quality specifications

    Clinical and Laboratory Standards Institute (CLSI) guideline C3-A4 Clinical Laboratory Reagent Water (CLRW)

  • Modularity

    1–8 BenchMark instruments may be controlled from one PC

  • Configuration

    Free standing or modified benchtop installation

  • Certifications

    CSA, EMC, CE compliant

  • Ordering code


Temperature control

  • Instrument operational temperature

    37°C–75°C (98°F–167°F)

Environmental requirements

  • Heat

    1200 BTU/Hr

  • Operating temperature

    15°C to 30°C (64°F to 90°F)

  • Humidity

    20% to 80%, non-condensing

Electrical specifications

  • Voltage

    100 VAC +/- 10% (Japan), 120 VAC +/- 10% (US & Canada), 230 VAC +/- 10% (Europe)

  • Current

    4 Amps

  • Frequency

    50/60 Hz

  • Power connection

    Standard 3-prong grounded

  • Fuse

    Waste module: 6.3 Amps, 250 Volts, 5 mm x 20 mm, fast acting

Instrument physical characteristics

  • Size (W x D x H)

    50.8 cm x 63 cm x 135.4 cm (20 in x 25 in x 53.3 in)

  • Weight

    76.7 kg (165.7 lbs)

  • Clearances

    Rear 15.2 cm (6 in)
    Top 30.5 cm (12 in)
    Left side 7.6 cm (3 in)
    Right side 61 cm (24 in) to open door to 90°
    Right side 101.6 cm (40 in) to open door to 180°
    Front 108 cm (42.5 in)
