For in vitro diagnostic use. Instrument BenchMark ULTRA PLUS IVD BenchMark ULTRA PLUS INS_6476 BENCHMARK ULTRA PLUS Instrument 07613336184608 Not Available BENCHMARK ULTRA PLUS INSTRUMENT 09576797001 Not Available Instruments en The BenchMark ULTRA PLUS instrument is intended to automatically stain histological or cytological specimens on microscope slides with specific immunohistochemistry, immunocytochemistry, or in situ hybridization reagents for in vitro diagnostic use.The BenchMark ULTRA PLUS instrument fully automates the processes of baking, deparaffinization, and staining for the qualitative or semi quantitative detection of analytes as an aid in diagnosis by pathologists. The system is intended for use in the anatomic pathology (AP) laboratory environment by trained laboratory personnel who are knowledgeable in histology processes and have basic computer operation skills. en Instrument and consumablesSpecificationRequirementSlide processing capacity30 independent slide drawers.Slide tray positions1 to 30 positions, continuous access.ThroughputApproximately 90 slides in 8 hours based on standard IHC samples.Slide heater temperature37 °C to 90 °C +/- 2 °C90 °C to 100 °C +2 °C /-3 °CReagent carousel35 reagent positions.Slides25 × 75 mm (1 x 3 inches) or 26 × 76 mm positively-charged microscope slides.Modularity1 to 4 BenchMark ULTRA PLUS instruments to one host computer is recommended for efficient processing, using VSS on the integrated touch screen monitor. Up to 8 instruments can be connected to the host computer if VSS is not used on the instrument touch screen monitor.Bulk reagentsUp to 7 different bulk reagents in 3- to 6-liter continuous access on-board containers.Internal system computerConnects to laboratory intranet or Roche Provided Network (switch box).WasteTwo 20 L carboys and two 5 L carboys. Waste is segregated.Dimensions and weight SpecificationMetric measurement (Europe)Imperial measurement (US)Height is less than or equal143 cm56 in.Width is less than or equal115 cm45 in.Depth is less than or equal89 cm35 in.Instrument dry weight is less than or equal393 kg645 lb.Size with rear covers removed (W x D x H) is less than or equal111 x 81.7 x 143 cm44 x 32.2 x 56 in.

BenchMark ULTRA PLUS

Deliver diagnostic confidence with BenchMark ULTRA PLUS

IVD

Experience the power of PLUS

Remain at the forefront of companion diagnostics and personalized medicines. The BenchMark ULTRA PLUS system uses an unprecedented, fully-automated workflow for immunohistochemistry (IHC) and in-situ hybridization (ISH) slide staining to decrease touchpoints.

Deliver diagnostic confidence with BenchMark ULTRA PLUS

Built upon the proven technology of the BenchMark ULTRA system, BenchMark ULTRA PLUS delivers an enhanced lab experience and an optimized workflow with flexible solutions based on feedback from customers like you. This easy-to-use solution helps histotechnologists and anatomic pathology laboratories manage activities efficiently and confidently, saving on personnel time and resource costs.

Key advantages of the BenchMark ULTRA PLUS include:

Workflow efficiency through remote connectivity
Fewer instrument touchpoints
Improved waste management system
On-instrument run management capabilities
Electronic inventory management
Over 200 assays in key diseases areas, including high medical value assays

Would you like to know more about BenchMark ULTRA PLUS?

Submit your details in order to be contacted by a Roche representative in your region with more details about BenchMark ULTRA PLUS and its availability in your region.

Learn more about the BenchMark ULTRA PLUS features

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

Optimized workflow

Improve usability while enabling time for more value-added activities through:

New light notifications communicate instrument status from across the lab
New retractable work surface gives technologists additional space to work while at the instrument
New bulk reagent color-coded clips make bulk reagent loading easier and helps minimize errors
New remote access allows you to view, manage, complete, and print system data remotely
New integrated communication allows streamlined data management and inventory tracking across all host computers

Flexible solutions

New features based on user feedback:

New configuration has a decreased height compared to the BenchMark ULTRA
New integrated touchscreen reduces bottlenecks by allowing many functions to be done at the instrument
VSS 14.1 software allows for easier navigation of inventory management and ordering through a new filter as well as lot-to-lot validation on the same instrument
New proprietary waste management^* solution degrades DAB (3,3'-diaminobenzidine) to less than 5 ppb meeting the most stringent municipality requirements for nonhazardous waste

*It is the responsibility of each customer to ensure compliance with all applicable laws and regulations related to the disposal of waste.

Quality is at the core

Proven BenchMark technologies deliver the right stain at the right time:

Flexible, independent temperature control for individual slide staining optimization
Proven staining technology of air vortex mixing with LCS create a reaction chamber allowing full slide coverage with 100ul of reagent
New slide drawer design mitigates fluid ingress and egress resulting in continuous and highly-reliable drawer performance
VSS 14.1 software has new and expanded reporting capabilities including quality assurance/quality control (QA/QC)

You might be interested in

...

General characteristics

Fully automated

Baking, deparaffinization, cell conditioning and staining, including IHC, ISH, SISH, immunofluorescence, multiparameter IHC staining (dual, triple), counter stain and titration
Slide position

1–30 slides with independent processing/functionality and temperature control for each position

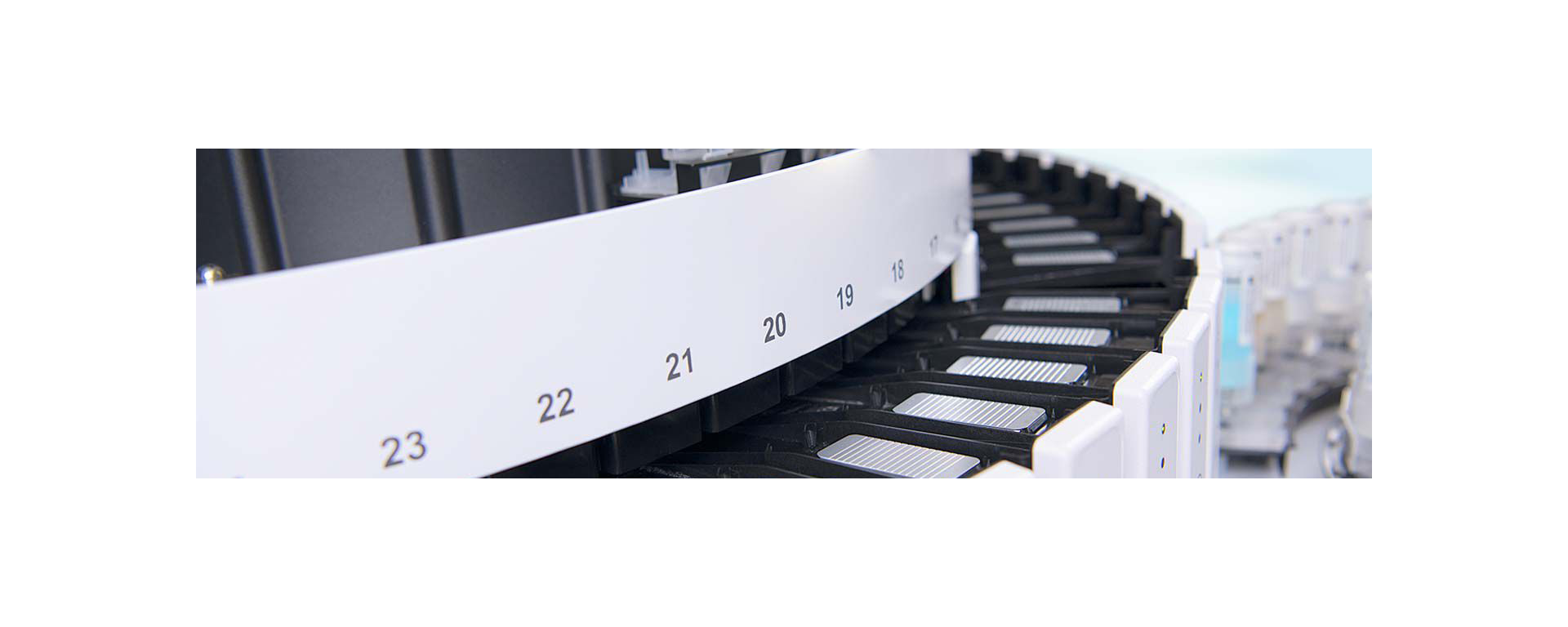

Reagent carousel

35 reagent positions
Slides

25 x 75 mm, 1 x 3 in or 26 x 76 mm positively charged slides
Bulk solutions

Up to 7 different bulk solutions can be changed “on the fly” without process interruption
Waste

Two 20 L carboys, can be changed “on the fly” without process interruption
DI water supply

NCCLS Type II water or equivalent (deionized water)
Temperature control

Ambient to 100°C
Modularity

One to eight VENTANA BenchMark ULTRA, VENTANA Discovery ULTRA or VENTANA BenchMark Special Stains instruments may be controlled from one BenchMark ULTRA computer system
Configuration

Free standing
Certifications

EC/EN 61010-1, IEC/EN 61010-2-010, IEC/EN 61010-2-101, IEC/EN 61010-2-081, EN 61326-2-6
Catalog number

N750-BMKU-FS 05342716001

Environmental requirements

BTU/Hour output

400 BTU/Hr idle, 1000 BTU/Hr running
Room temperature

68°F to 90°F (20°C to 32°C)
Humidity

10% to 90%, non-condensing

Electrical specifications

Voltage

~100–230V
Current

4–6 Amps
Frequency

50/60 Hz

Physical characteristics

Size (W x D x H)

44 in x 35.25 in x 59.15 in
111.8 cm x 89.5 cm x 150.2 cm
Weight

Instrument with reagents: 854.9 lbs (387.8 kg) full fluids, bulk, reservoirs, and UV
Instrument dry: 606.5 lbs (275.1 kg)
Clearances

Top 16.6 in (42.2 cm)
Sides 4 in (10.2 cm)
Rear 6 in (15.2 cm)
